Standard Conway Super Flash
Specification
Manufacturer | : | Standard |
---|---|---|
Produced | : | 1955 |
Classification | : | Medium Format |
Body Type | : | Box |
Construction | : | Metal/Bakelite |
Film Type | : | 120 |
Film Width | : | 62mm |
Image Size | : | 2¼ x 3¼ in |
No. of Images | : | 8 |
Focal Length | : | 115mm |
Lens Type | : | Meniscus |
Focus Type | : | Fixed plus Close-up lens |
Focus Range | : | 10ft to inf. plus Close-up (3-9ft) |
Aperture Type | : | Fixed plus green filter |
Aperture | : | f/16 |
Shutter Type | : | Rotary |
Shutter Speeds | : | B, I*(1/40 sec) |
Size (w x h x d) | : | 95 x 110 x 130 mm |
Weight | : | 560g |
* Measured on this camera |
Art Deco Credentials
Limited: Minor and insubstantial
- Produced after the main Art Deco period;
- Angular flash icons on front plate;
- Ribbed Bakelite body front;
- Chrome viewfinder covers;
- Diamond pattern on viewfinder covers;
- Ribbed plastic strap handle
- Symmetrical front plate
Description

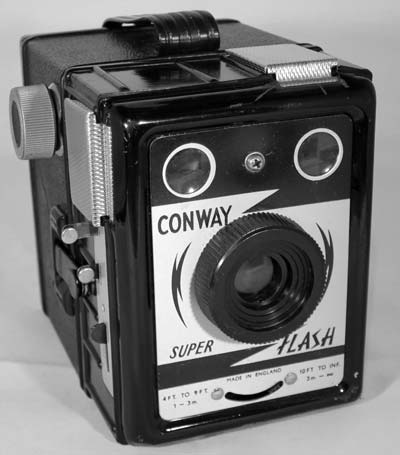

The Standard Conway Super Flash Box camera uses rollfilm No.120. It is similar to other cameras made by Coronet and in particular the Coronet Captain, Coronet Ambassador, and the Coronet Rex Box. These cameras were also made by Tiranty in France. This means that the same camera model could be found either British made or French made. The Captain is a simple box camera designed for capturing 6 x 9 cm pictures. It is constructed in two parts. The front is made from ribbed Bakelite with a decorative metal front plate. The rear is a metal box. It features chrome hinged view finder covers over two brilliant finders for landscape or portrait photos. It has a nice ribbed plastic strap. The camera uses 'press studs' to attach the front to the body.
It has a fixed focus meniscus lens. The film plane is curved to give better focus at the corners. Shutter has two settings: instant or time, although the time setting is more like 'bulb'. There is a tab to pull to switch between instant and time exposures. The film advance is not coupled to the shutter release so double exposure is possible. A built in green filter can be pulled into place by a lever on the side. The green filter can be used for photographing plants, separating the green foliage from the brightly-coloured flowers. It can also be used in landscape photography to boost the appearance of grass and trees. There is a two position sliding lever below the lens that controls the focus. In one position, focus is between 3ft and 9ft whilst in the other the focus goes between 10ft and infinity. This model has synchronised flash connectors on the side.
How to Use
This camera takes 120 film which is easily available.
As the shutter speed is only 1/40s, it is advisable to use a tripod to get clear shake free images. However, holding it against a wall or other solid object would work as well. For quick snapshots, hold it firmly against your body.
If you don't want to bother with an exposure meter, follow the guide shown. It is based on the 'Sunny 16' rule. Film is so forgiving and will produce acceptable results even when overexposed by 2 or 3 stops or underexposed by 1 stop.
The tables assume that the sun is at least 30 degrees above the horizon - that's 10am - 5pm on a summers day (May - August) in the UK.
Remember that the exposure guide in the manual may not be helpful as it is based on the use of old film with a low ISO value.
Using ISO 100/125 film - shutter speed 1/40s
Weather Conditions | Shadow Detail | Aperture | Exposure |
---|---|---|---|
Sunny Snow/Sand | Dark with sharp edges | f/16 | +2 Stops Overexposed Acceptable |
Sunny | Distinct | f/16 | +1 Stop Overexposed Acceptable |
Slight Overcast | Soft around edges | f/16 | Good |
Overcast | Barely visible | f/16 | -1 Stop Underexposed Acceptable |
Heavy Overcast | None | f/16 | -2 Stops Underexposed Not Acceptable |
Open Shade /Sunset | None | f/16 | -3 Stops Underexposed Not Acceptable |
