Genos Rapid
Specification
| Manufacturer | : | Genos Kamerabau |
|---|---|---|
| Produced | : | 1950 |
| Classification | : | Medium Format |
| Body Type | : | Pseudo TLR |
| Construction | : | Bakelite |
| Film Type | : | 120 |
| Film Width | : | 62mm |
| Image Size | : | 60 x 60 mm |
| No. of Images | : | 12 |
| Lens Type | : | Meniscus |
| Focal Length | : | 80mm |
| Focus Type | : | Fixed |
| Focus Range | : | 10ft to inf |
| Aperture Type | : | Variable Stops |
| Aperture | : | f/11, f/16 |
| Shutter Type | : | Rotary |
| Shutter Speeds | : | T,I*(1/100 sec) |
| Size (w x h x d) | : | 90 x 115 x 100mm |
| Weight | : | 383g |
| * Measured on this camera | ||
Art Deco Credentials
Noteworthy: Worth giving special attention
- Produced after the main Art Deco period
- Constructed in Bakelite
- Streamline Moderne design
- Stepped detailing around lensplate
- Horizontal linear detailing around body
- Chrome and black faceplate with triple stripes
- Chrome detailing to viewfinder, strap plate and body catches

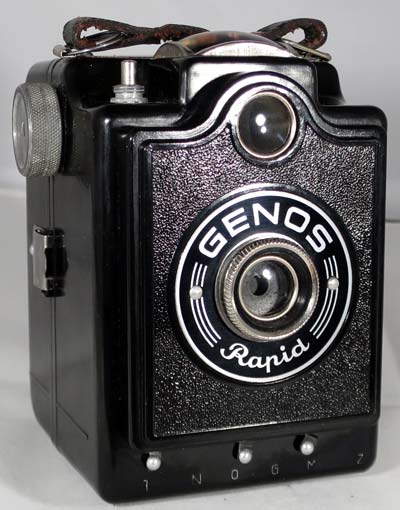

Description
The Genos Rapid was made in Germany by Genos Kamerabau around 1950. It exhibits a Streamline Moderne design with rounded corners which was prevalent in the late 30s and 40s.
The camera produces twelve 6 X 6 cm exposures on 120 film. All the settings can be adjusted quickly by moving the 3 levers on the front face of the camera. Maybe this is why it is called 'Rapid'. The time settings are instant(M) and time(Z). It has a fixed focus lens and the aperture settings are N(f/11) and T(f/16). A yellow filter can either in omitted(O) or in place(G). The shutter release is on top of the camera which is threaded for the connection of a Leica type remote cable release. There is a waist level viewfinder which is large, making it easy to frame your subject accurately.
The camera can be described as a pseudo twin lens reflex camera. It isn't a true TLR because the top lens is just part of the viewfinder and does not aid focussing. Film advance is by red window. There is a tripod socket on the base. The camera is kept closed by spring clips on each side.
How to Use
This camera takes 120 film which is easily available from most camera outlets.
As the shutter speed is only 1/100s, it is advisable to hold it against a wall or other solid object to get shake free images. For quick snapshots, hold it firmly against your body.
If you don't want to bother with an exposure meter, follow the guide shown. It is based on the 'Sunny 16' rule. Film is so forgiving and will produce acceptable results even when overexposed by 2 or 3 stops or underexposed by 1 stop.
The tables assume that the sun is at least 30 degrees above the horizon - that's 10am - 5pm on a summers day (May - August) in the UK.
Remember that the exposure guide in the manual may not be helpful as it is based on the use of old film with a low ISO value.
Using ISO 100/125 film - shutter speed 1/100s
| Weather Conditions | Shadow Detail | Aperture | Exposure |
|---|---|---|---|
 SunnySnow/Sand | Dark with sharp edges | f/16 | +1 Stops Overexposed Acceptable |
| Sunny | Distinct | f/16 | Good |
 Slight Overcast | Soft around edges | f/11 | Good |
 Overcast | Barely visible | f/11 | -1 Stop Underexposed Acceptable |
 Heavy Overcast | None | f/11 | -2 Stops Underexposed Not Acceptable |
 Open Shade/Sunset | None | f/11 | -3 Stops Underexposed Not Acceptable |
