Fototecnica Eaglet
Specification
| Manufacturer | : | Fototecnica |
|---|---|---|
| Produced | : | 1950 |
| Classification | : | Medium Format |
| Body Type | : | Box |
| Construction | : | Metal |
| Film Type | : | 120 |
| Film Width | : | 62mm |
| ImageSize | : | 3¼ x 2½ in |
| No. of Images | : | 8 |
| Lens Type | : | meniscus |
| Focal Length | : | 90mm |
| Focus Type | : | Fixed |
| Focal Range | : | 10ft - inf. |
| Aperture Type | : | Fixed |
| Aperture | : | f/16 |
| Shutter Type | : | Rotary |
| Shutter Speeds | : | T, I*(1/100sec) |
| Size[body] (w x h x d) | : | 80 x 96 x 110 mm |
| Weight | : | 393g |
| * Measured on this camera | ||
Art Deco Credentials
Limited: Minor and insubstantial
I consider this camera to warrant 1 star for the following attributes:
- Designed after the main Art Deco period
- Silver painted Faceplate
- Chromed viewfinder
- Name in decorative script on nameplate
- Curved corners on box body

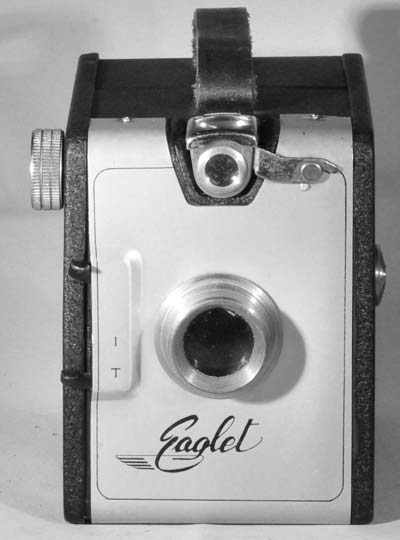

Description
This metal bodied camera opens at the side to load the film.
It has a simple T & I shutter and a single sized aperture. There is an aluminium knob to wind the film and framing control is by the use of the red window. The red window has no cover. It has a swinging waist level viewfinder which fits neatly into a recess for storage. The viewfinder is used in the docked position for portrait images but swings out when landscape view is required. It has no tripod mount. Being made from metal makes this a very sturdy camera. It benefits from a real leather handle.
How to Use
This camera takes 120 film which is easily available from most outlets.
If you don't want to bother with an exposure meter, follow the guide shown. It is based on the 'Sunny 16' rule. Film is so forgiving and will produce acceptable results even when overexposed by 2 or 3 stops or underexposed by 1 stop.
Remember that the exposure guide in the camera user manual may not be helpful as it is based on the use of old film with a low ISO value.
The table assumes the use of ISO 100 film and that the sun is at least 30 degrees above the horizon - that's 10am - 5pm on a summer's day in the UK. For lower light levels, use ISO 400 film.
This camera has an aperture of f/16 and a measured shutter speed of 1/100s.
As the shutter speed is only 1/100s, it is advisable to try to hold the camera against a wall or other solid object. For quick snapshots, hold it firmly against your body as you look through the viewfinder.
Cover the red window with black tape except when winding on in low light.
Using ISO 100/125 film - shutter speed 1/100s
| Weather Conditions | Shadow Detail | Aperture | Exposure |
|---|---|---|---|
 SunnySnow/Sand | Dark with sharp edges | f/16 | +1 Stop Overexposed Acceptable |
| Sunny | Distinct | f/16 | Good |
 Slight Overcast | Soft around edges | f/16 | -1 Stop Underexposed Acceptable |
 Overcast | Barely visible | f/16 | -2 Stop Underexposed Unacceptable |
 Heavy Overcast | None | f/16 | -3 Stop Underexposed Unacceptable |
 Open Shade/Sunset | None | f/16 | -4 Stop Underexposed Unacceptable |
